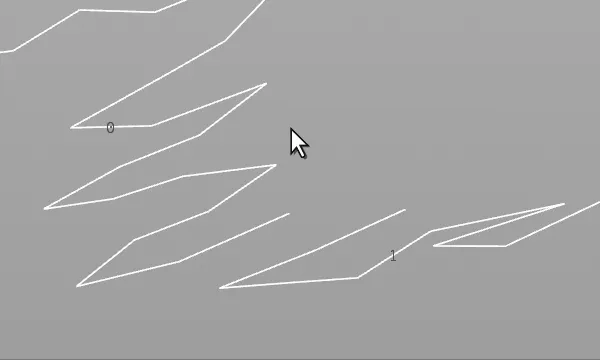

ポリラインを選択表示する

import hou
import viewerstate.utils as su

class State(object):
    MSG = "Move the mouse over the geometry."

    def __init__(self, state_name, scene_viewer):
        self.state_name = state_name
        self.scene_viewer = scene_viewer
        self.poly_id = -1
        self.geometry = None

        self.edge_range = 8 # エッジの当たり判定（ピクセル）

        # Construct a geometry drawable group
        # エッジ
        line = hou.GeometryDrawable(self.scene_viewer, hou.drawableGeometryType.Line, "line",
            params = {
                "color1": (0.2,0.8,1.0,1.0),
                "style": hou.drawableGeometryLineStyle.Plain,
                "line_width": 2 }
        )

        # ポイント
        point = hou.GeometryDrawable(self.scene_viewer, hou.drawableGeometryType.Point, "point",
            params = {
                "num_rings": 2,
                "radius": 4,
                "color1": (0.2,0.8,1.0,1.0),
                "style" : hou.drawableGeometryPointStyle.LinearSquare}
        )

        self.poly_guide = hou.GeometryDrawableGroup("poly_guide")

        self.poly_guide.addDrawable( line )
        self.poly_guide.addDrawable( point )

    def show(self, visible):
        """ Display or hide drawables.
        """
        self.poly_guide.show(visible)

    def onEnter(self, kwargs):
        """ Assign the geometry to drawabled
        """
        node = kwargs["node"]
        self.geometry = node.geometry()
        self.show(True)

        self.scene_viewer.setPromptMessage( State.MSG )

    def onResume(self, kwargs):
        self.show(True)
        self.scene_viewer.setPromptMessage( State.MSG )

    def onInterrupt(self,kwargs):
        self.show(False)

    def onMouseEvent(self, kwargs):
        # hou.GeometryViewportクラス
        viewport = self.scene_viewer.curViewport()

        # ジオメトリとの当たり判定
        ui_event = kwargs["ui_event"]
        (origin, dir) = ui_event.ray()

        prim_num = -1

        # エッジとマウスポインタの交差判定
        for i in range(len(self.geometry.prims())):
            points = self.geometry.prim(i).points()

            # エッジごとの判定処理
            # マウスポインタからの線分と各エッジを最短で結ぶ直線と交点を計算している
            A = origin
            B = origin + dir
            ab = (B-A).normalized()

            for j in range(len(points) - 1):
                C = points[j].position()
                D = points[j+1].position()
                cd = (D-C).normalized()
                ac = (C-A)

                d0 = (ab.dot(ac)-cd.dot(ac)*ab.dot(cd))/(1-(ab.dot(cd)*ab.dot(cd)))
                d1 = (ab.dot(ac)*ab.dot(cd)-cd.dot(ac))/(1-(ab.dot(cd)*ab.dot(cd)))

                # 線分の範囲内か判別
                if d1 >= 0 and d1 < (D-C).length():
                    c0 = A + ab * d0
                    c1 = C + cd * d1
                    dist = (viewport.mapToScreen(c1) - viewport.mapToScreen(c0)).lengthSquared()

                    if dist < pow(self.edge_range, 2):
                        prim_num = i
                        break
            else:
                continue
            break

        # 左ボタンクリック時のイベント
        device = ui_event.device()
        if device.isLeftButton():
            self.log(prim_num)

        # update the geometry used by drawables
        if prim_num != -1 and prim_num != self.poly_id:
            self.poly_id = prim_num

            # Construct a new geometry
            poly_points = self.geometry.prim(self.poly_id).points()
            poly_geo = hou.Geometry()
            poly = poly_geo.createPolygon(False) # hou.Polygonクラスが生成される

            for i in range(len(poly_points)):
                point = poly_geo.createPoint()
                point.setPosition(poly_points[i].position())
                poly.addVertex(point)

            # update the drawable
            self.poly_guide.setGeometry(poly_geo)
            self.show(True)

        elif prim_num == -1:
            self.poly_id = -1
            self.poly_geo = None
            self.show(False)

    def onDraw( self, kwargs ):
        """ This callback is used for rendering the drawables
        """
        handle = kwargs["draw_handle"]

        self.poly_guide.draw(handle)

def createViewerStateTemplate():
    """ Mandatory entry point to create and return the viewer state
        template to register. """

    state_typename = kwargs["type"].definition().sections()["DefaultState"].contents()
    state_label = "ViewerStateTest::1.0"
    state_cat = hou.sopNodeTypeCategory()

    template = hou.ViewerStateTemplate(state_typename, state_label, state_cat)
    template.bindFactory(State)
    template.bindIcon(kwargs["type"].icon())

    return template

for i in range(len(p0)):
    for j in range(len(p1)):
        if p0[i] > p1[j]:
            break
    else:
        continue
    break
